# SESSION 5: An Introduction to SEQUENTIAL LOGIC

This final session is an introduction to another branch of logic circuits, which as the name suggests,
involves time. The output of a sequential circuit depends not just on the value of inputs at the present
time, but on value of inputs that have been present in the past. This is very different from the circuits
in the previous sessions which are called combinational logic. Here the output value is dependent only on
the value of inputs present at that instant in time. Sequential circuits are made up of the same basic
gates of AND, OR and NOT, as the combinational circuits but configured in such a way as to form storage.
The circuits have "memory" which allows previous input values to be stored an used later. The simplest of
these is called a **Latch**. The basic latch circuit can be based on **NAND gates or NOR gates**. Remember
a NAND gate is formed by an AND followed by a NOT, and a NOR formed by an OR gate followed by a NOT.

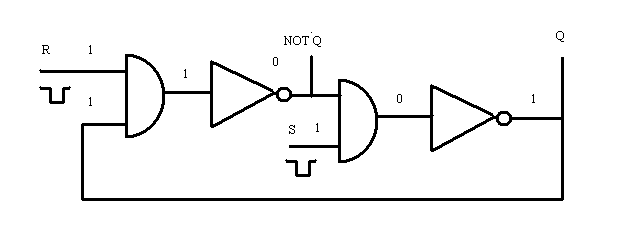

A latch formed from NAND gates

The action of this circuit is as follows. The inputs marked **R and S** are both logic **"1"** at the start. Assume
the output of **AND gate_A** is a **"1"**. This means that **Q**, which is the second input, must be **"1"**. The output of
**AND gate_B** must **"0"** for **Q**, which is **NOT AND gate_B**, to be **"1"**. The **S** input is "1" so the other
input, **NOT Q,** must be **"0"**. We started with **AND gate_A** as **"1"** therefore **NOT AND gate_A** must be **"0"**.
As **NOT AND gate_A** is **NOT Q** then all the logic levels are consistent and this is a stable circuit, i.e. one where the output
levels will not change over time without a change of inputs.

*First Test*

If input **S** goes to **"0"** and back to **"1"** then nothing will change as the other input to **AND gate_B** is already
**"0"**.

*Second Test*

If input **R** goes to **"0"** then **AND gate_A** will change to **"0"**. Then **NOT AND gate_A**, which is also **NOT Q**
will go to **"1"**. Then as both inputs to **AND gate_B** are **"1"** the output from **AND gate_B** will go to **"1"**.
Then **NOT AND gate_B** which is also **"Q"** goes to **"0".**

*third Test*

If input **R** goes to **"0"** and back to **"1"** then nothing will change as the other input to **AND gate_A** is already
**"0"**.

*four Test*

If input **S** goes to **"0"** then **AND gate_B** will change to **"0"**. Then **NOT AND gate_B**, which is also **Q**
will go to **"1"**. Then as both inputs to **AND gate_A** are **"1"** the output from **AND gate_A** will go to **"1"**.
Then **NOT AND gate_B** which is also **"Q"** goes to **"0".**

*five Test*

If input **S** goes to **"0"** and back to **"1"** then nothing will change as the other input to **AND gate_B** is already
**"0"**.

## PRACTICAL WORK

First build the **NAND** latch above using one quad 2-input **AND** chip and one hex **inverter** chip. The outputs, **Q and NOT Q,**
should be connected two of the lamp monitors.

Second connect a logic switch to the "R" input and another to "S" input.

Third check the operation of the circuit and see if it follows the description above.

Finally look at the latch bellow, made from **NOR** gates. See if you can work out how it works, then build and check in the same way as
you checked the **NAND** latch. make a note of your results in your log book.

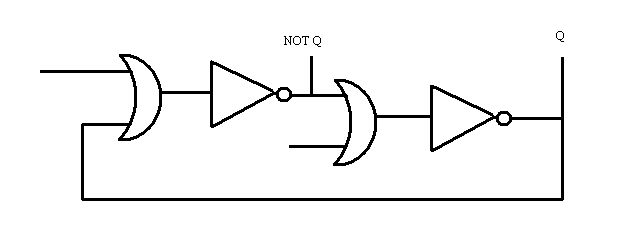

A latch formed from NOR gates
